ILIOS CUBE

Ilios-Cube

ILIOS CUBE

 21.400,00

*Note: Pick up at our EU hub in the Netherlands; register and plate it yourself (all EU type certified) FROM

EUR 15,299.00 excl VAT

EUR 19,999.00 incl VAT

PLN 85,499.00 incl VAT

Color

Select Country

    ILIOS CUBE

    Specification Specification Details

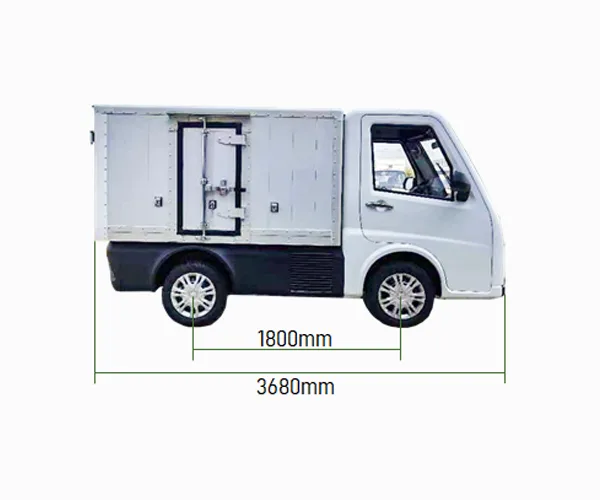

    Size (L×W×H) (mm) 3685×1400×1910
    Aluminum Cargo Hopper (L×W×H) (mm) 2080×1280×260

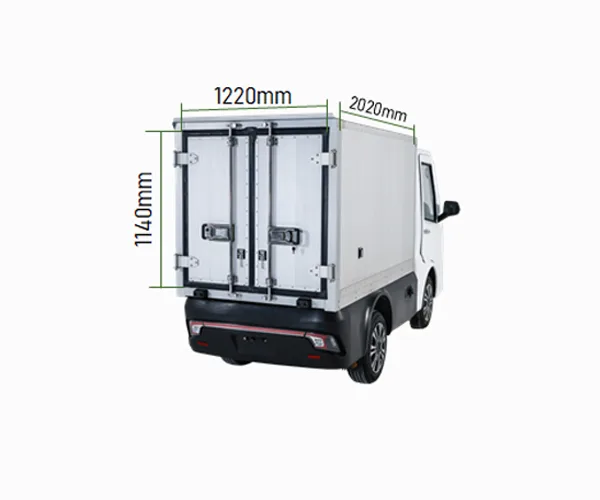

    Cargo Box (L×W×H) (mm) 2080×1280×1200
    Chassis Clearance (mm) 160
    Wheel Base (mm) 1800
    Seats 2
    Steering LHD/RHD (Optional)

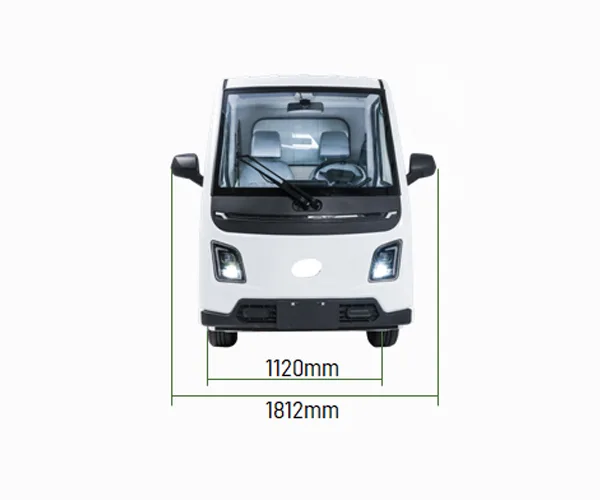

    Front Track (mm) 1120
    Rear Track (mm) 1160
    Curb Weight (Without battery) (kg) 598
    Unloaded Braking Distance (m) 7.5
    Loading Capacity (kg) 650
    Minimum Turning Radius (m) ≤4.2
    Approach/Departure (°) 15/25
    Motor Type (KW) Permanent magnet synchronous motor – 14.8
    Acceleration Time (s) <15
    Speed (km/h) 80
    Battery Capacity (KWh) 20.6/27.2
    Range (km) 170-200/220-250
    Climbing Requirements (%) <25
    Battery Type Lithium iron phosphate battery (LFP) LiFePO4
    System Voltage (V) 89.6
    Charge Mode Home charging + AC Charging station
    Charge Time (h) 6.5-10
    Motor Driving Mode Spur gear reducer drive
    Car Body Structure Separate frame construction
    Front/Rear Suspension Type Front independent suspension / rear axle type
    Front/Rear Brake Type Disc brakes / ABS
    ABS Anti-lock Braking System Yes
    Airbag Main driver seat (optional)
    Electric Steering Assist System (EPS) Yes
    Seat Belt Warning (Main Driver) Yes
    Central Control Lock Yes
    Reversing Camera Yes
    Digital Rearview Mirror Yes
    Speaker Yes
    Reverse Buzzer Yes
    Electric Vacuum Auxiliary Braking System Yes Yes
    Headlights, Day Lights, Rear Taillights Yes
    Power Adjust Rearview Mirror Yes
    Electric Wiper Yes
    Window Electric control
    Tyre 175/65R14
    Smart LCD Display Yes
    Air Conditioner Yes
    Intelligent Sharing Software Optional
    Attachment Device Aluminum cargo hopper, aluminum cargo box, cold chain box, garbage transfer bucket, road cleaning and customization
    EU Homologation L7e-CU

    Key Features

    SPEED 80 km/h

    RANGE 220 - 250 km

    CHARGE TIME: 10 hours

    Loading Capacity 650 kg

    ENERGY-SAVING eco-friendly pure electric transport minitruck, EFFICIENT POWER; instant torque from electric motors; quick acceleration, MINIMAL NOISE; smooth drive, HIGH FLEXIBILITY; versatile/multipurpose- large 12 inch SCREEN DISPLAY, low or no ROAD TAX, CHARGE AT HOME (220 Volt; household socket) or Car Charging Station (6.5-10 h), allowed for ALL TYPES OF ROADS, ABS breaking system & EPS (smooth) steering system, SMALL TURNING RADIUS, THREE LAYER PAINTING, SPACIOUS CABIN DESIGN, REVERSE CAMERA, ELECTRIC ADJUST REAR VIEW SIDE MIRROR, DIGITAL REAR VIEW MIRROR, ELECTRIC WINDOWS, BRAKE (energy) RECOVERY system, BODY (Cube): aluminum, lightweight/strength, corrosion resistance, energy saving, LOAD CAPACITY: 650 KG, SPEED 80 km/h, RANGE 170/200 km/20.6 kwH Battery (optional: 27.2 kwH Battery –> 200/250 km), 2-PERSONS

    ILIOSCARS.eu* initiates and develops state-of-the-art electric ILIOS-branded vehicles and machinery, designed for both performance and sustainability.
